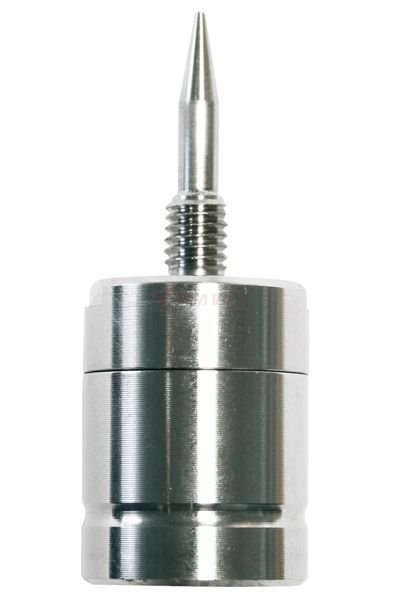

EBRO EBI 11-T230 data logger

Introduction to EBRO EBI 11-T230 Data Logger

The EBRO EBI 11-T230 data logger is a specialized wireless temperature data logger manufactured by EBRO (Germany). The device is used for measuring, monitoring sample temperatures, and validating thermal processes in production environments as well as testing laboratories. Thanks to its ultra-compact design, the product effectively meets HACCP safety and quality control requirements.

Outstanding features

• Wide temperature measurement range from -30°C to +150°C, resolution of 0.01°C, and accuracy of ±0.1°C using a pointed Pt1000 sensor probe sized Ø3 mm x 20 mm.
• Ultra-compact body measuring Ø16.5 x 24 mm, made of durable V4A stainless steel and PEEK, rated IP68 / NEMA 6 for complete dust and water protection.
• Memory capacity of 15.000 measured values, flexible logging interval from 1 second to 24 hours with continuous or configurable start/stop modes.
• Standalone wireless operation powered by a 2 x BR1225 A (3V) Lithium battery, ideal for placement in tight spaces or inside packaging.

Applications

• Temperature validation in food and beverage pasteurization and sterilization processes.
• Core temperature measurement during processing and packaging in compliance with HACCP standards.
• Process control for heating, autoclaving, and drying in pharmaceutical and medical industries.
• Harsh environmental temperature monitoring in testing laboratories and production lines.

Frequently Asked Questions

Can the EBI 11-T230 operate in submerged environments?
Yes, the device is designed with IP68 / NEMA 6 protection and a V4A stainless steel housing, allowing safe operation in water or high-humidity environments.

What is the memory capacity of the device?
The EBI 11-T230 can store up to 15.000 measured values with a user-adjustable sampling interval from 1 second to 24 hours.
