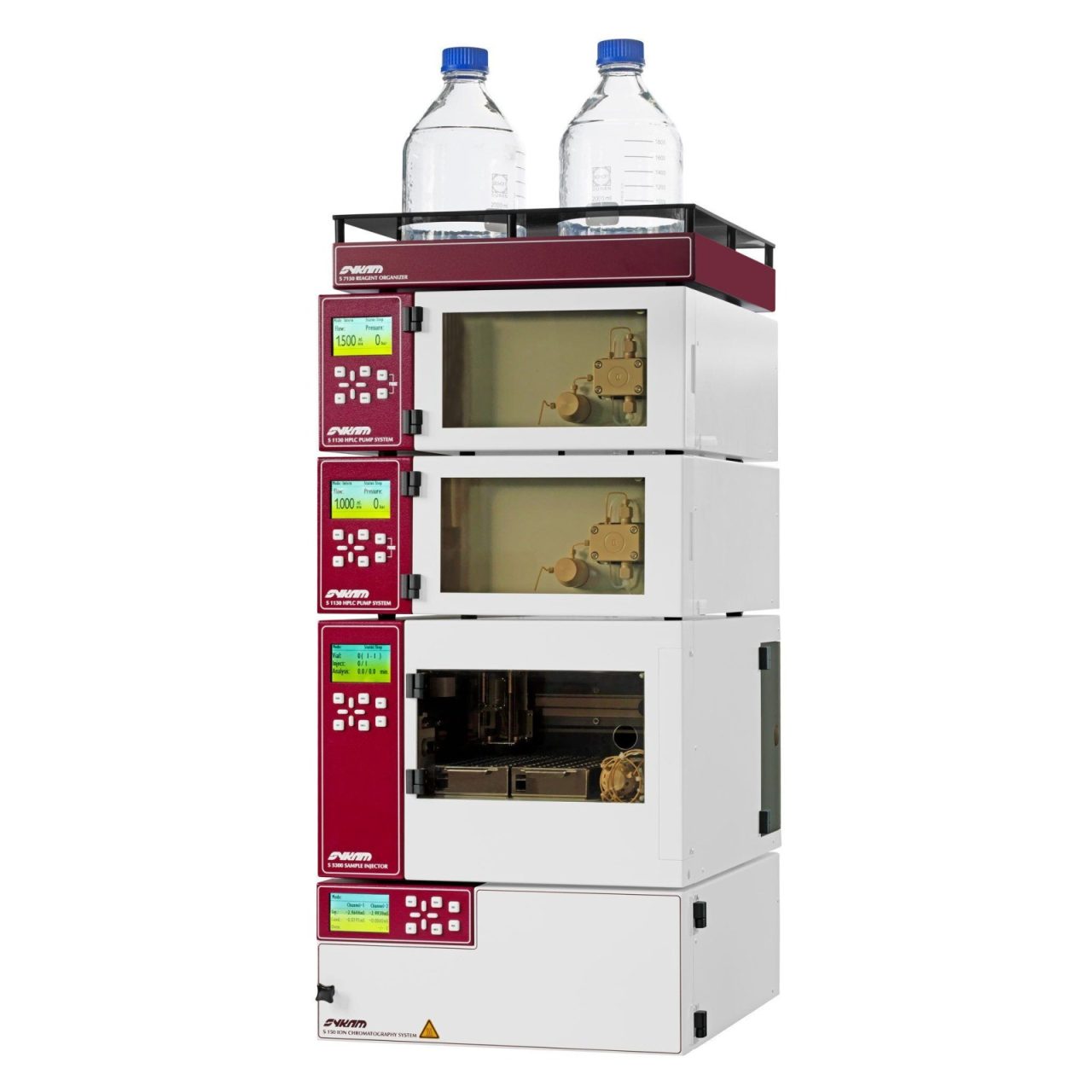

SYKAM S153-AG Dual Automatic Ion Chromatography System

Specifications:

1. S 1130 High-Pressure Pump System (Dual Pump).

• The dual pump system includes:

Pump 1: 4 channels. Integrated vacuum degasser for 4 channels.

Pump 2: 1 channel. Integrated vacuum degasser for 1 channel.

• All wetted parts are made of chemically inert materials such as PEEK or PTFE, preventing equipment corrosion
• Flow rate: Programmable: 0.001 - 10.000 ml/min
• Pump pressure: 0 – 40 MPa
• Pulsation: < 0.1 MPa or < 1.0 %
• Accuracy: ± 1.0 % 1.000 ml/min
• Accuracy: ± 0.1% RSD 1.000 ml/min
• Individual channel degassing: <20% dissolved gas remaining in water @ 1.000 ml/min
• Gradient range: 0.0 – 100.0%, 4 channels
• Uniformity: <0.50%
• Mixing volume: 10 – 500 µl
• Dimensions: 396 x 165 x 478 mm
• Power supply: 100 - 250 V~ (47 - 63 Hz)
• Additional features: Plunger wash mechanism, solvent leak detection mechanism, Flow pilot function (smart flow control)

2. S 7150 Reagent Organizer: Chemical-resistant plastic tray with 4 bottles (1000 ml)

3. S 5300 Autosampler, Upgrade: Variable Volume + Heating/Cooling

• All wetted parts are made of chemically inert materials such as PEEK or PTFE, preventing equipment corrosion
• Dual needle design, needle protection, prevents clogging and sample loss during injection
• Sample capacity: 120 samples (1.5 ml) and 192 samples (microtiter plates)
• Sample loop: adjustable up to 100 µL
• Injection volume: 0.1 - 999.9 µl
• Reproducibility: < 0.5% (per 10 µl)
• Linearity: CF > 0.999 (per 10 µl)
• Carryover: <0.05% after wash
• Heating/Cooling: 5 - 60°C (at +20°C ambient temperature)
• Communication port: RS-232
• Dimensions (W×D×H): 396 x 275 x 478 mm
• Power supply: 110/250 V, 47/63 Hz

4. S 150 Ion Chromatography Compartment with integrated column oven

• Column oven:

Temperature: 30°C - 100°C

Accuracy: <0.1°C

• All wetted parts are made of chemically inert materials such as PEEK or PTFE, preventing equipment corrosion
• Ion chromatography compartment includes:

1 Eluent compartment (upgradeable with 1 additional, optional)

1 Diaphragm pump

1 Pressure relief valve

1 Suppressor compartment

1 Suppressor compartment pressure sensor

1 Regeneration Valve

2 Flow Cells: Anion and Cation

2 Conductivity Detector Channels

Dimensions (W×D×H): 396 x 165 x 478 mm

Power supply: 110/250 V, 47/63 Hz

5. Data system

Clarity chromatography software system

21 CFR Part 11 compliant HPLC software
