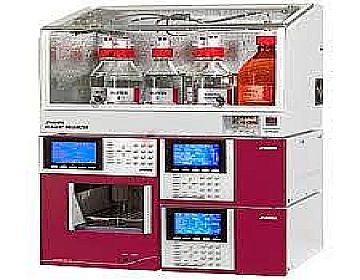

SYKAM S433 Automatic Amino Acid Analyzer

SKU: S433

Brand

Quantity

Need consultation?

The SYKAM S433 Automatic Amino Acid Analyzer is a next-generation automated amino acid analyzer, specially designed for applications in pharmaceuticals, food, agriculture, biotechnology, and scientific research. Featuring ion-exchange chromatography and post-column derivatization technology, the S433 delivers accurate, stable, and highly reproducible analytical results.

✅ Outstanding advantages of the SYKAM S433 Amino Acid Analyzer

🔄 Fully automated from pumping, degassing, chromatographic separation to quantification

🧪 Ion-exchange chromatography combined with post-column derivatization technology

💻 Dedicated, user-friendly control software for convenient result storage and processing

🌡️ Precise temperature-controlled column oven ensuring optimal separation efficiency

🔬 High-sensitivity amino acid detection with UV detector (570 nm and 440 nm)

Specifications:

1. Solvent tray set S7130

Integrated Peltier cooling system
Integrated nitrogen gas system preventing solvent contamination and oxidation. Maximum pressure: 1,6 bar

2. High-pressure pump system S2100 (Quaternary Gradient pump) with integrated 4-channel vacuum degasser

All wetted parts are made of chemically inert materials such as PEEK or PTFE, preventing equipment corrosion
Pumping mechanism: dual piston pump (Pulsation: <1%)
Flow rate: 0.01 - 10ml/min
Maximum pressure: 400 bar (6000 PSI)
Accuracy: <1.0%
Precision: <0.1%
Integrated 4-channel vacuum degassing system
Mixing chamber with >100 gradient programs, homogeneity: 0,1%
Communication ports: RS-232, analog signal
Display: LCD 240×120
Dimensions (W×D×H): 310 x 210 x 450 mm
Power supply: 110/220 V, 50/60 Hz
Weight: ~ 16 kg

3. Autosampler S5300

All wetted parts are made of chemically inert materials such as PEEK or PTFE, preventing equipment corrosion
Sample capacity: 120 samples (two 60-position racks)
Injection mode: Fixed loop or variable volume programmable (min. 1 µl)
Injection method: Loop Overfill
Reproducibility: < 0.1% (per 10 µl)
Carryover: < 0.01%, depending on wash programming
Integrated sample rack heating and cooling from 5 to 70°C
Communication port: RS-232
Dimensions (W×D×H): 415 x 300 x 445 mm
Power supply: 110/220 V, 50/60 Hz
Weight: ~ 20 kg

4. Amino Acid Reaction Unit S4300

All wetted parts are made of chemically inert materials such as PEEK or PTFE, preventing equipment corrosion
Pumping mechanism: dual piston pump (Pulsation: <1%)
Flow rate: 0.01 - 2.0 ml/min
Reaction chamber temperature: Adjustable, max. 180oC
Column oven: Integrated with temperature gradient (programmable) and leak sensor, range 20oC to 99oC
Integrated dual photometer for amino acid detection at 440 and 570 nm
Integrated automatic coil wash unit to prevent cross-contamination

8. Data system

Clarity chromatography software system

21 CFR Part 11 compliant HPLC software
