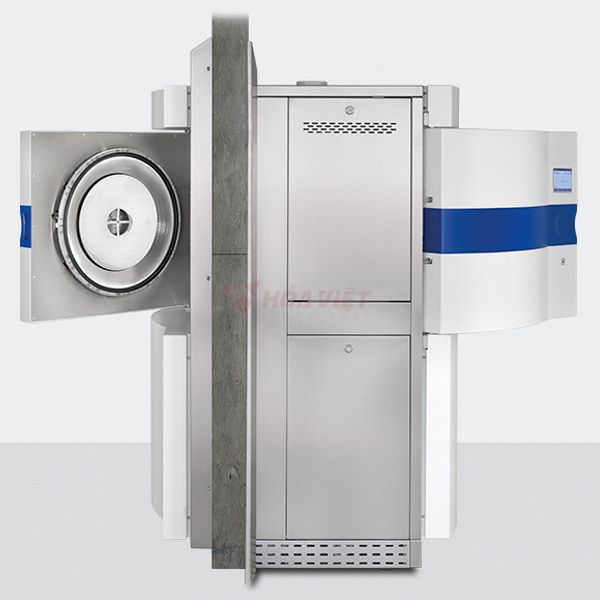

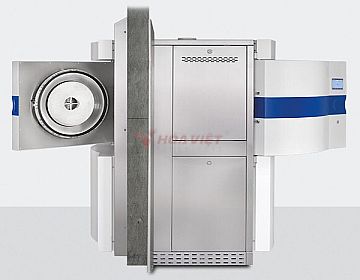

Systec HX-200 2D double-door autoclave

SKU: 000-200-2D

Brand

Quantity

Need consultation?

The Systec HX-200 2D double-door autoclave with a capacity of 200L is designed for stringent cleanroom and safety conditions. It is suitable for biosafety laboratories and cleanrooms in laboratory or production facilities. The autoclave functions as a sterilization lock, separating sterile and non-sterile areas to protect the external environment. The SYSTEC autoclave is ideal for a wide range of laboratory applications, including the most demanding sterilization processes. It delivers effective sterilization from routine procedures to specialized applications, consistently ensuring reliable results and compliance with ISO 9001 and ISO 14001 standards.

Functions:

Advanced HMI and PLC with touchscreen control

Optimized HMI allows fast navigation and customization of processes and settings

Newly developed autoclave system software (PLC)

Password-protected access for parameter changes and safe interventions

Internal memory capable of storing documentation data for at least 10 years

Timer for programming start times

F0 value calculation

Customizable automatic door opening at cycle end

Ethernet and USB ports for external data transfer

Text input for batch information (up to 20 characters)

Integrated feature for comprehensive batch documentation, exportable as PDF and CSV to USB or Ethernet network

Backup feature allowing complete backup and restore of autoclave software including sterilization programs, settings, and custom parameters

Time synchronization with a time server via network or internet

Integrated steam generator separated from the chamber

Housing, support frame, and pressure chamber made of corrosion-resistant stainless steel

The autoclave pressure vessel is made of corrosion-resistant stainless steel 1.4404 (AISI 316L) and electropolished for easy cleaning

Circumferential ring locking system for safe locking of the pressure vessel door

All connections on the pressure vessel are designed as Tri-Clamp

All fittings and valves in the supply lines (from the media connection point to the first valve downstream of the sterilization chamber) for demineralized water, steam, or compressed air are made of stainless steel. All piping is made of FDA-approved PTFE.

Temperature and pressure range up to 140 °C, 4 bar absolute pressure, optional extension to 150°C, 5 bar

Up to 100 sterilization programs; program lists and sterilization cycles are fully customizable

Flexible PT-100 temperature sensor (Class A)

Additional temperature sensor in the condensate exhaust

Water-cooled effluent drain, thermostatically controlled

Validation port for connecting external measuring equipment
