SYSTEC Mediaprep-45 Automated Media Preparator

Introduction to Systec Mediaprep-45 Automated Media Preparator

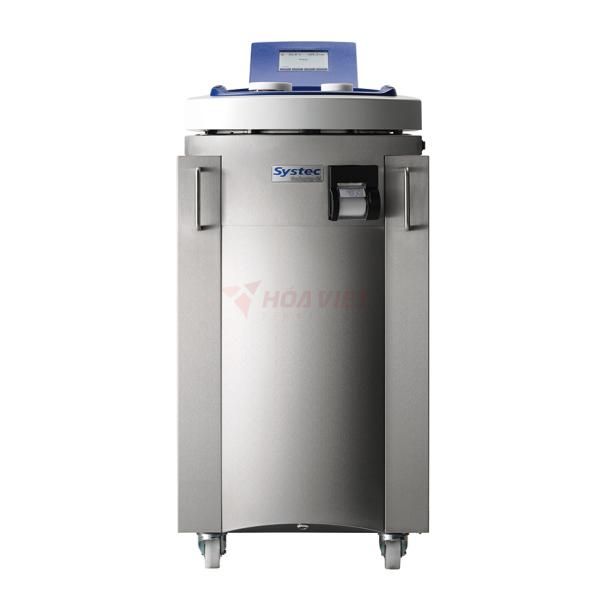

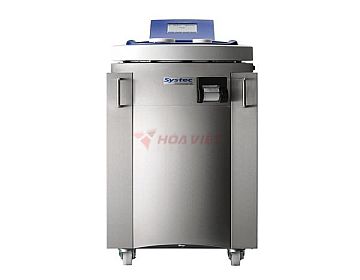

The Systec Mediaprep-45 automated media preparator (code 1745) is a large-capacity microbiology media sterilization and preparation unit manufactured by Systec (Germany). The equipment automates the entire process of heating, sterilizing, and cooling liquid media in the laboratory. Mediaprep-45 helps optimize sample preparation time and ensures high batch-to-batch homogeneity for culture media.

Outstanding features

• 51,3L capacity chamber with a sterilization temperature range of 60 °C – 138 °C, precisely controlled via a PT-100 temperature sensor.
• 5,7-inch touchscreen controller with 7 preset programs, supporting up to 100 stored programs and 5-level user access rights.
• Stirring system with adjustable speed from 0 – 270 rpm, integrated automatic water supply, start timer, and temperature maintenance program to keep the solution warm.
• Reliable operation with overheat protection, safe water level alarm, and a maximum operating pressure of 3.5 bar.
• Equipped with an RS232 interface, USB port, and ¾-inch cooling water connection threads.

Applications

• Preparation and sterilization of sterile culture media for food and pharmaceutical microbiology testing laboratories.
• Large-scale nutrient media production at research institutes and biotechnology centers.
• Preparation of liquid media for plant tissue culture and biomedical testing.

Frequently Asked Questions

What are the power supply and power consumption specifications?
The Systec Mediaprep-45 operates on 380 - 400 V, 50 / 60 Hz, 32 A, with a power consumption of 20 kW.

What are the overall dimensions of the Mediaprep-45?
The unit's dimensions (Length × Width × Height) are 550 x 780 x 1080 mm. Contact us at Hoa Viet for detailed installation advice.
